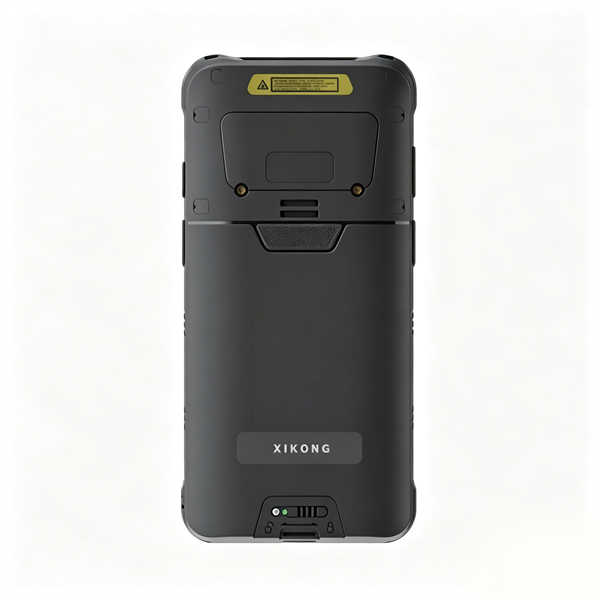

Product Features
Adopts industry‑leading octa‑core CPU running at 2.3GHz, equipped with the latest high‑performance Android 13 operating system;
Integrates Wi‑Fi, Bluetooth, 4G, GPS/Beidou global positioning system, 1D & 2D barcode, NFC;
Features superior sensitivity to support more accurate and faster data collection;
Built‑in large‑capacity 8000mAh battery with 18W fast charging for ultra‑long standby and operating hours.
Performance parameters
Project
Parameter
Storage
4GB+64GB
Operating System
Android 13
Dimensions
132.8×74.7mm
Expansion Slot
Nano SIM x2 or (Nano SIM x1+TF card x1)
Audio
Speaker microphone x2 earpiece vibration motor
Keyboard
power button, volume+/- button, scan button x2
Interface
Type‑C USB x1, Support OTG function USB3.0
Sensor
Gravity sensor, light sensor, distance sensor
Bluetooth
Supports Bluetooth 2.1+EDR/3.0+HS/4.1+HS+5.0
Weight
＜500g(Depends on the device's functional configuration)
Touch Screen
6‑inch 720P, supports multi touch control
WLAN
Dual band 2.4GHz/5GHz, supporting IEEE 802 a/b/g/n/ac protocols
battery Capacity
Standard 7.7V 4000mAh/3.85V 8000mAh
Camera
Rear 1600W, front 500W
Frequency
840‑960MHz customization optional (default 902‑928MHz)
Air Interface Protocols
ISO 18000‑6C/EPC Class1Gen2
Distance
5‑15 meters
Scan Engine
CM60、T20(or can be configured as needed)
Operating Temperature
-20 °C to 60 °C/-40 °C to 60 °C
Ambient Humidity
5% RH‑95% RH (no condensation)
Drop Specification
1‑meter drop on marble floor without malfunction
Protection Grade
IP67
